Industrial SFP Fiber Switch 1 Port 100BASE SFP + 1 Port 10 / 100BASE-T

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pairs/month

Delivery Time : 3-4 working days

Packaging Details : package and carton

Power Consumption : 12W Max. 0.5A@24VDC

Operating Temperature : -40°C to +85°C

Storage Temperature : -40°C to +85°C

Fiber Ports : 1x1000Base-FX ports (SC/ST/FC/LC/SFP connector, optional)

Transmission : 0-100km

Input Voltage : 24V DC (18~36VDC)

Contact Now

Industrial Ethernet Fiber Switch 1 Port 100BASE SFP + 1 Port 10 / 100BASE-T

Technical parameters

Ethernet
Standards:	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
	IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet)
	IEEE802.3x (Flow Control)
	IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate::	1,488,000pps (1000Mbps)
Cabling:	1000Base-TX: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	1x RJ45
Optical Port:	1000Base-FX ports (SC/ST/FC/LC connector, SFP Slot, optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	> 300,000 hrs
Electrical and Mechanical
Input Power:	24VDC (18~36VDC, 6-Pin Terminal Block)
Power Consumption:	12W Max. 0.5A@24VDC
LED Indicators
PWR:	Power Status
RUN:	Link/Activity, Speed
FX:	Link/Activity
Dimensions (WxDxH):	112 x 138 x 42mm
Weight:	480g
Casing:	Aluminum Case
Mounting Options:	Din-Rail mounting, Wall mounting
Regulatory Approvals
Safety: UL 60950-1
EMS: EN61000-4-2 (ESD),Level 3, EN61000-4-3 (RS),Level 3, EN61000-4-4 (EFT),Level 3, EN61000-4-5 (Surge),Level 3, EN61000-4-6 (CS),Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2

Product overview

Industrial SFP Fiber Switch are hardened devices designed to reliably operate in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.Eliminate EMI and RFI issues or overcome distance limitations with copper based cabling by using the Industrial Media Converter to convert your copper based equipment over to fiber optics. The media converter can connect to either 10Base-T, 100Base-TX or 1000Base-TX ports and provides a 100Base-FX fiber optic connection for links up to 120 km.

Product featurer

* Converts 10/100/100Base-TX to 1000Base-FX
* IEEE802.3/802.3u/802.3x,store and forward
* Plug-and-play, easy to installation
* 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation
* Designed for industrial applications. IP40 protection, Aluminum Alloy
* Extensive LED indicators for network diagnostics
* Environmentally hardened -40°C to 80°C
* (-40°F to 176°F) operating temperature

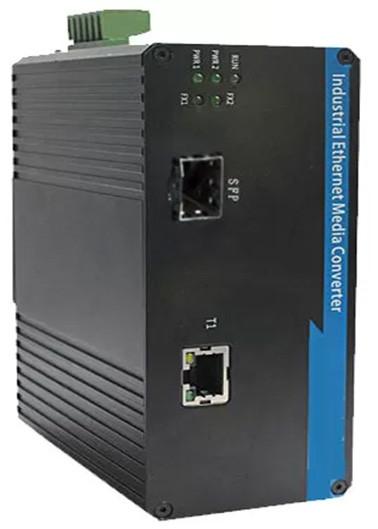

Product picture
Industrial SFP Fiber Switch 1 Port 100BASE SFP + 1 Port 10 / 100BASE-T

Packaging & Shipping

● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
